RHF5 50.39/68.01mm 11+0 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Model Number : RHF5

MOQ : 1PC

Packaging Details : Delphi

Delivery Time : 3-7 days after payment

Payment Terms : TT,western union ,paypal

Contact Now

1. MODEL:RHF5 forward

2.RHF5 50.39/68.01mm 11+0 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:11.42mm

Inducer:50.39mm

exducer:68.01mm

Tapered tip exducer:73.46mm

Tip height:5.72mm

Superback:3.71mm

bore size :6.10mm

Overall height:34.00mm

Trailing angle:50

Cutback:0.0

SP Height angle:0.00

Blades height:28.20mm

Splitter height:0.00mm

11+0 blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

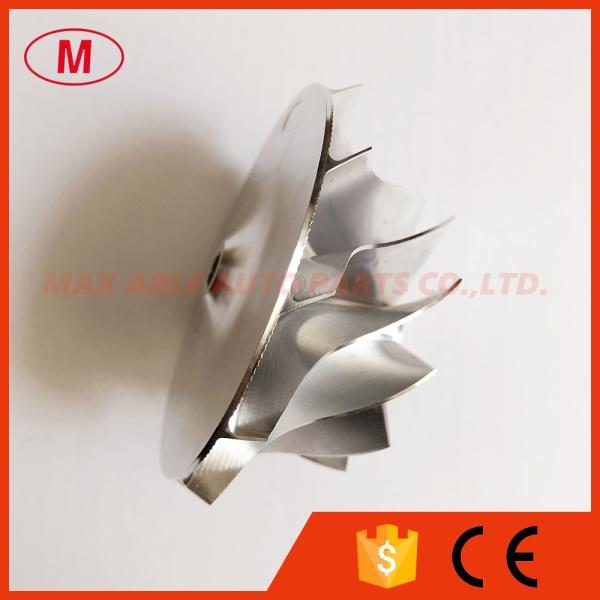

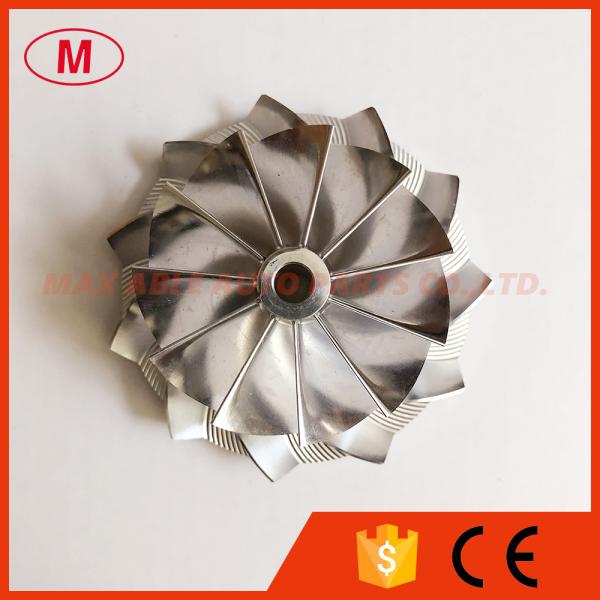

RHF5 50.39/68.01mm 11+0 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel Images
