Brand Name : NO
Model Number : RHF5
MOQ : 1PC
Payment Terms : TT ,western union ,paypal
Supply Ability : 1000
Delivery Time : 3-7 days
Packaging Details : neutral packing
Size : 49.50/63.80mm
Type : Turbochargers
1. MODEL:RHF5 forward
2.RHF5 49.50/63.80mm 6+6 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:11.19mm
Inducer:49.50mm
exducer:63.80mm
Tapered tip exducer:68.16mm
Tip height :4.78mm
superback:3.90mm
Overall height:31.87mm
Bore size:5.10mm
Bore type:through
Trailing Angle:60 degree
Cutback:3.0mm
Blades height:23.48mm
Splitter height:15.10mm
Sp height angle:-12.00
Tapered tip Angle:30 degree
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.





|
|

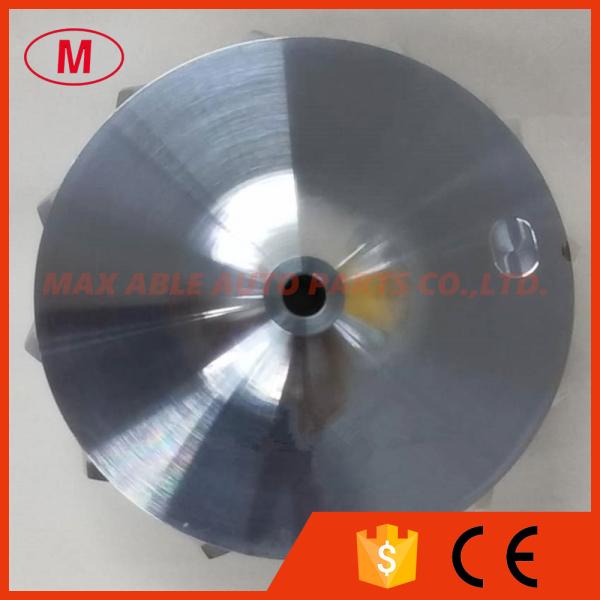

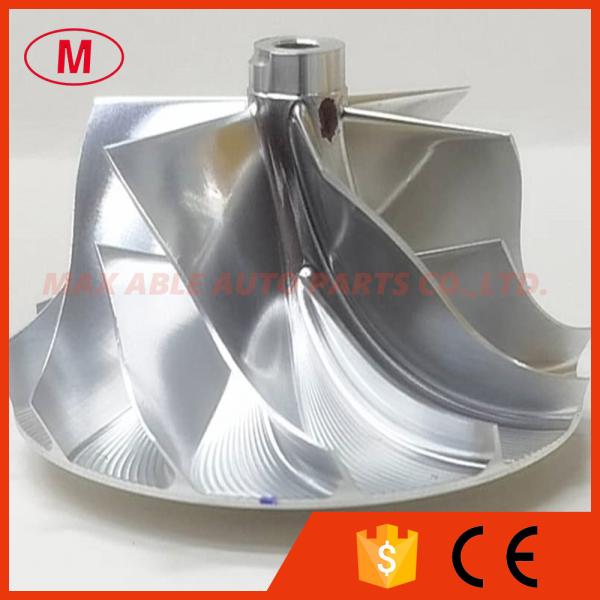

RHF5 49.50/63.80mm 6+6 blades high performance turbo turbocharger aluminum 2618/milling/billet compressor wheel Images |
