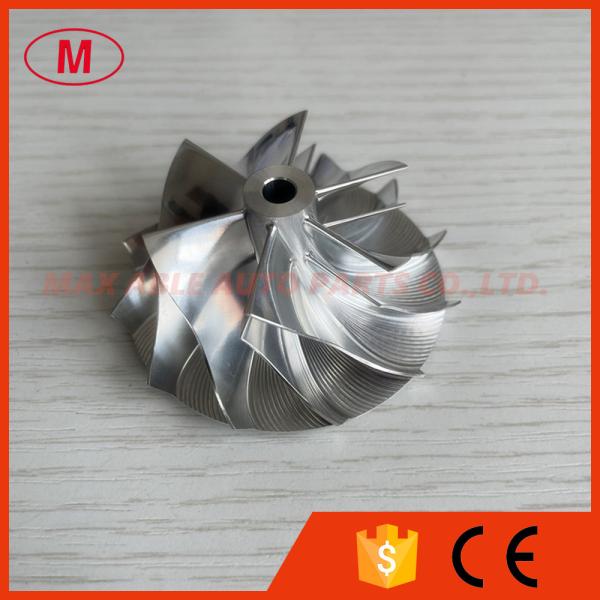

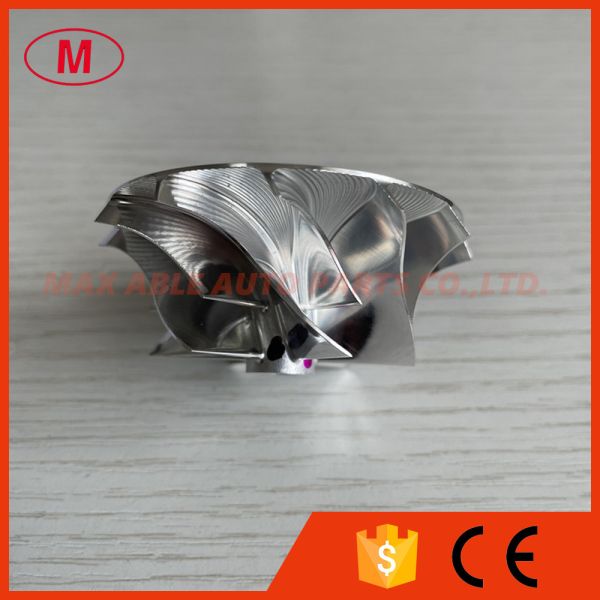

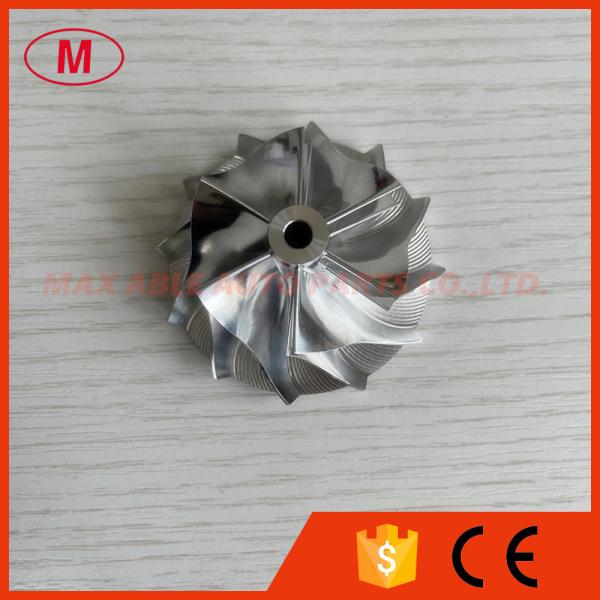

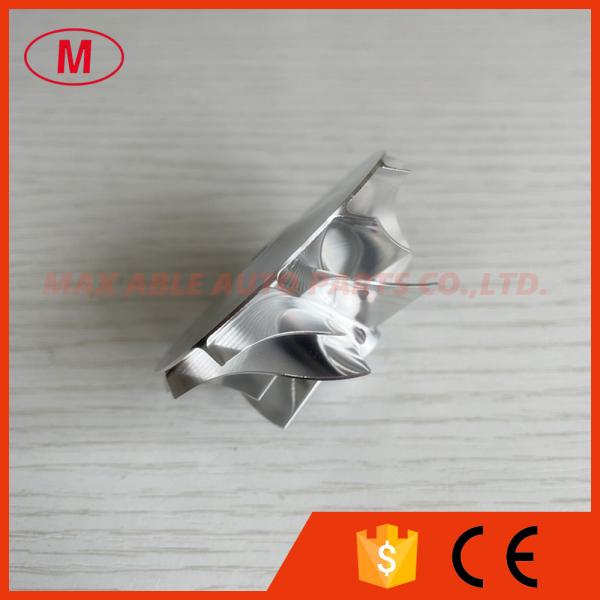

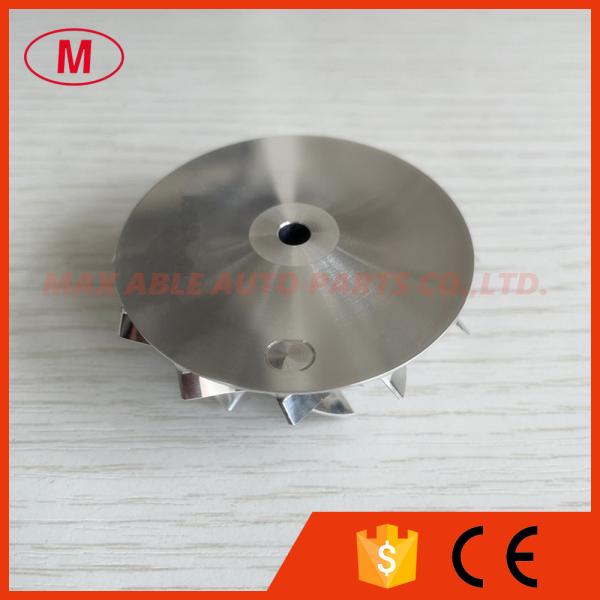

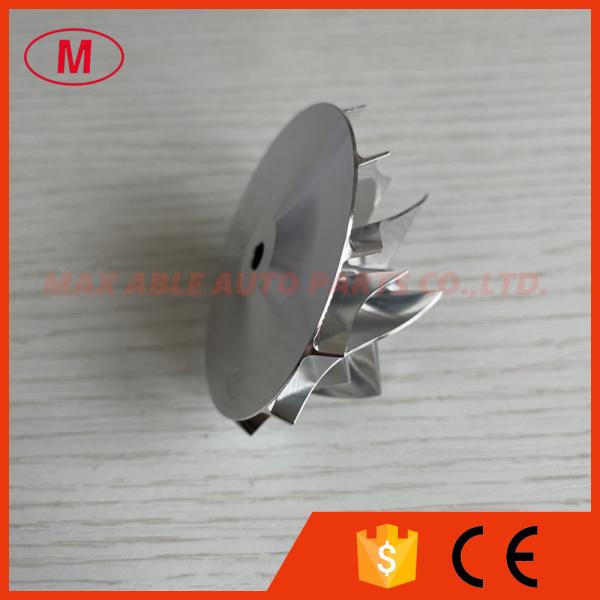

TD04HL 15T 49189-43500 41.95/56.02mm 6+6 blades Turbocharger milling/aluminum 2618 /Billet compressor wheel for 49189-00

Brand Name : NO

Model Number : TD04HL

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Size : 41.95/56.02mm

Type : Turbochargers

Contact Now

1. MODEL:TD04HL 15T Forward

2.TD04HL 15T 49189-43500 41.95/56.02mm 6+6 blades Turbocharger milling/aluminum 2618 /Billet compressor wheel for 49189-00560, 49189-00570, 49189-00580, 49189-00590, 49189-01700, 49189-01800, 49189-01810, 49189-01820,49189-01830,49189-02310,49189-02311,49189-02320,49189-02330,49189-02340, 49189-02350, 49189-02600, 49189-04200, 49189-07000, 49189-07001, 49377-06350, 49377-06351, 49377-06360, 49377-06361, 49389-01700 Volvo V40 2.0 T4,Saab 9-3 2.3 Turbo,Volvo S40 2.0 T4,Saab 9000 2.3 Aero
3.Size:

Nose diameter:10.77mm

inducer:41.95mm

Exducer:56.02mm

Tapered tip exducer:60.33mm

Tip height:4.74mm

Superback:1.83mm

Bore size:5.00mm

bore type:through

Cutback:0.0mm

Overall height:26.22mm

Blade height:22.38mm

Splitter height:15.40mm

Sp height angle:-2.00

6 long 6 short

It is for OE compressor housing

Tapered tip angle:30 degree

4.High quality and competitive price.

5.Any questions please send email to me.

We have more size ,if you want ,please don't hesitate to contact me.
