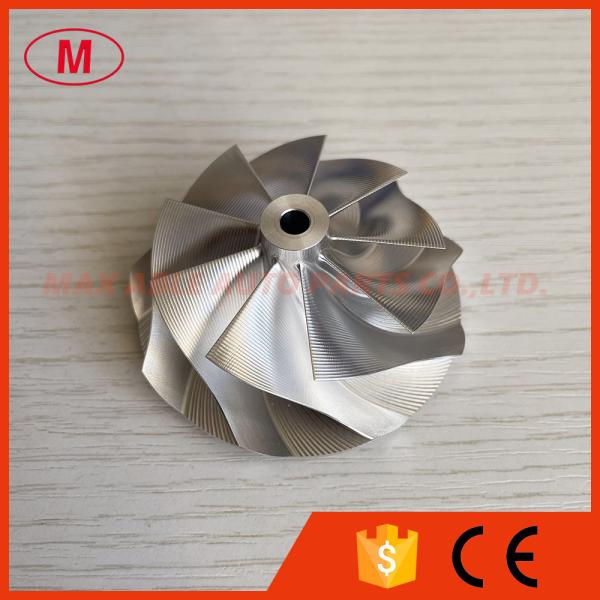

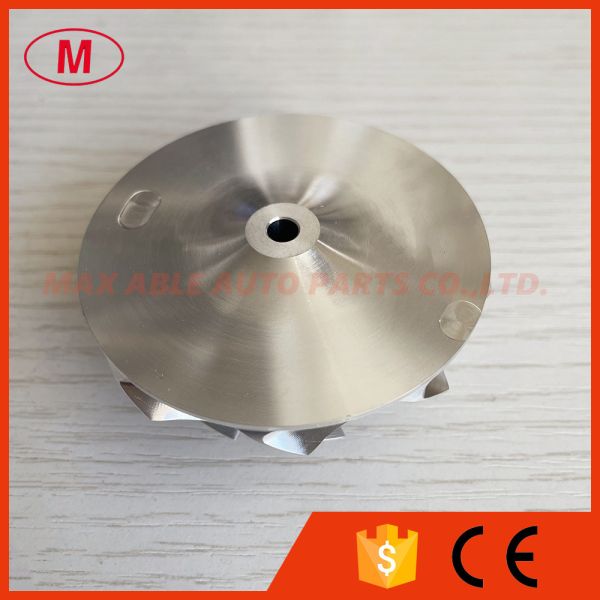

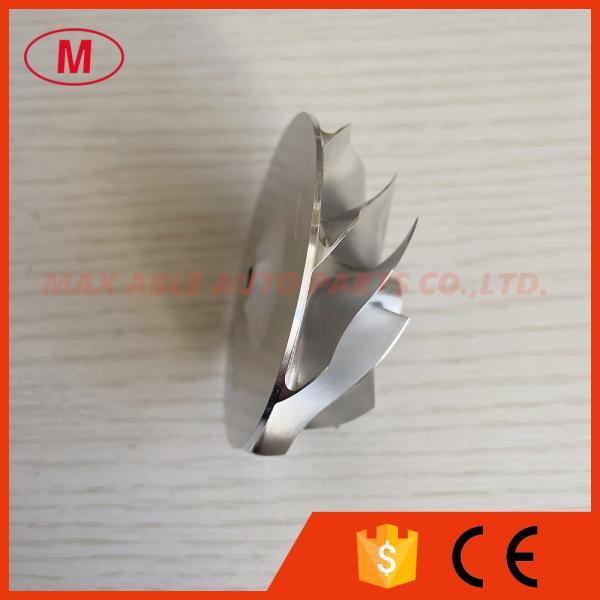

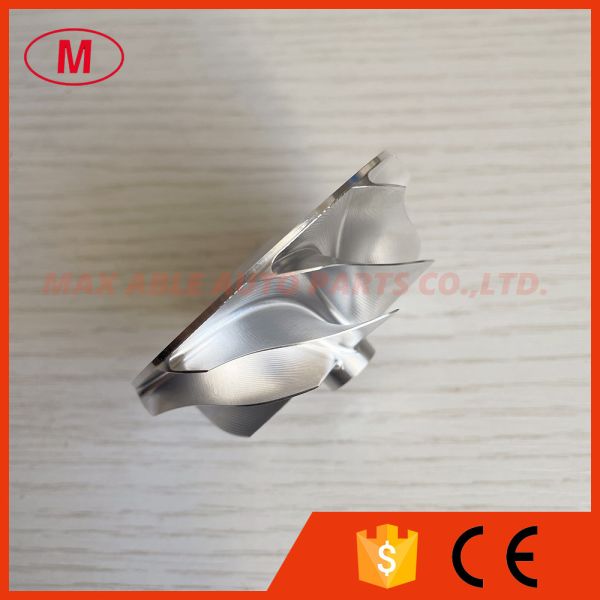

K04 48.35/60.00mm 9+0 Blades Point milling turbo aluminum 2618/Milling/billet compressor wheel

1.Model:K04 FORWARD

2.K04 48.35/60.00mm 9+0 Blades Point milling turbo aluminum 2618/Milling/billet compressor wheel
3.Size:

Nose diameter:10.87mm

Inducer:48.35mm

Exducer:60.00mm

Tapered tip exducer:62.16mm

Tip height:6.40mm

Trailing angle:35 degree

Superback:2.48mm

Bore size:4.61mm

bore type:through

Cutback:6.6mm

Overall height:27.58mm

SP Height angle:0.00

Blades height:21.03mm

Splitter height:0.00mm

9+0 blades

Tapered tip angle:11.5 degree

Forward rotation

It is custom size ,please check carefully before buying.

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

ALL the billet compressor wheels have been balanced.
