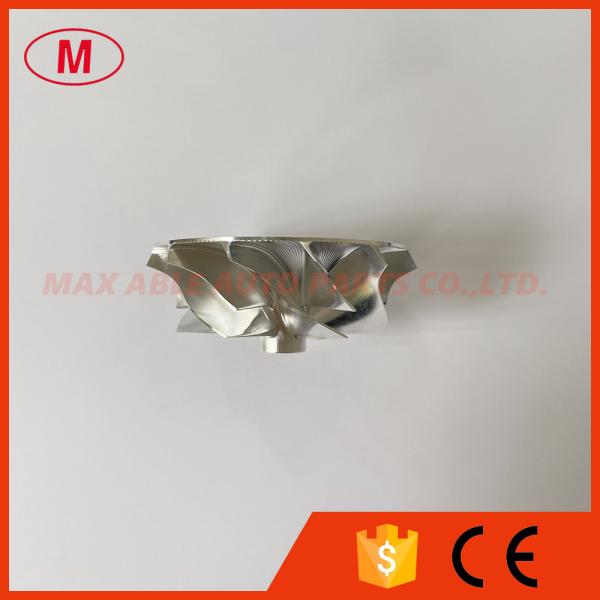

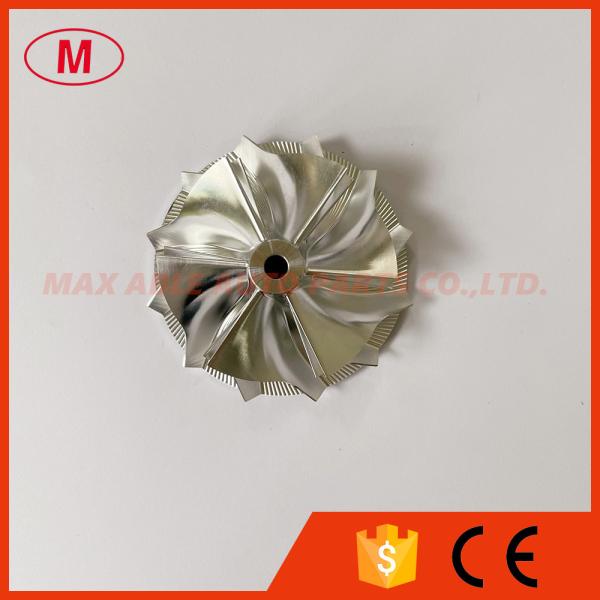

K04 48.35/58.00mm 6+6 Blades turbo aluminum 2618/Milling/billet compressor wheel ​

1.Model:K04 FORWARD

2.K04 48.35/58.00mm 6+6 Blades turbo aluminum 2618/Milling/billet compressor wheel

3.Size:

Nose diameter:10.95mm

Inducer:48.35mm

Exducer:58.00mm

Tapered tip exducer:61.43mm

Tip height:4.65mm

Trailing angle:60 degree

Superback:1.80mm

Bore size:4.61mm

bore type:through

Cutback:2.0mm

Overall height:25.55mm

SP Height angle:-3.00

Blades height:19.90mm

Splitter height:13.90mm

6+6 blades

Tapered tip angle:24 degree

Forward rotation

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

ALL the billet compressor wheels have been balanced.
