KP39 35.00/46.00mm 8+0 blades Turbo aluminum 2618/milling/billet compressor wheel

1. MODEL:KP39 Forward

2.KP39 35.00/46.00mm 8+0 blades Turbo Billet/aluminun 2618/milling compressor wheel

3.Size:

Nose diameter:8.34mm

inducer:35.00mm

Exduder:46.00mm

Tapered tip exducer:48.15mm

Tip height:3.96mm

Superback:2.81mm

Bore size :4.10mm

bore type:through

Overall height:23.60mm

Blade height:19.00mm

Cutback:2.0mm

splitter height:0.00

sp height angle:0.00

Trailing Angle:60 degree

8+0 blades

Foward rotation

tapered tip angle:19 degree

it is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The minimum order is 5pcs

All the billet compressor wheels have been balanced.

The more models we also have.

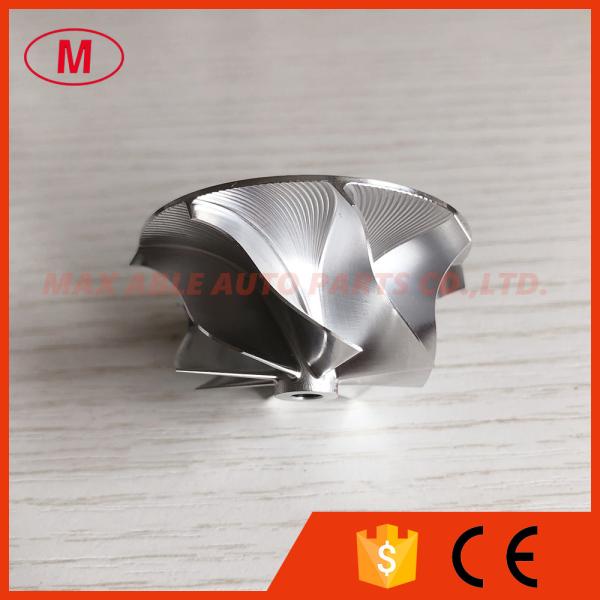

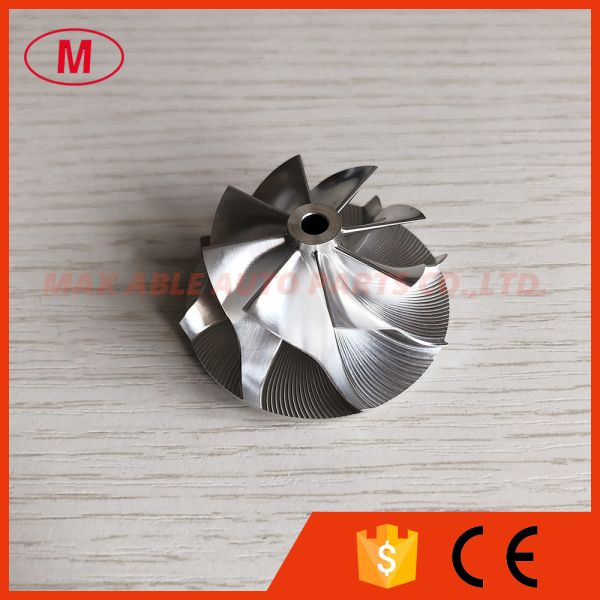

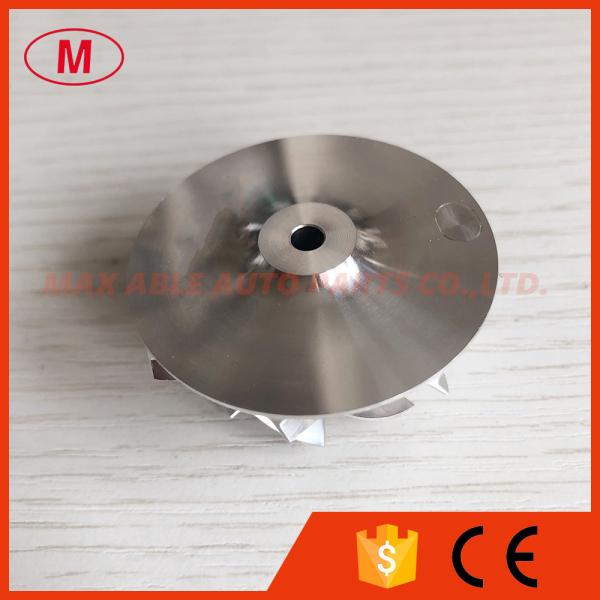

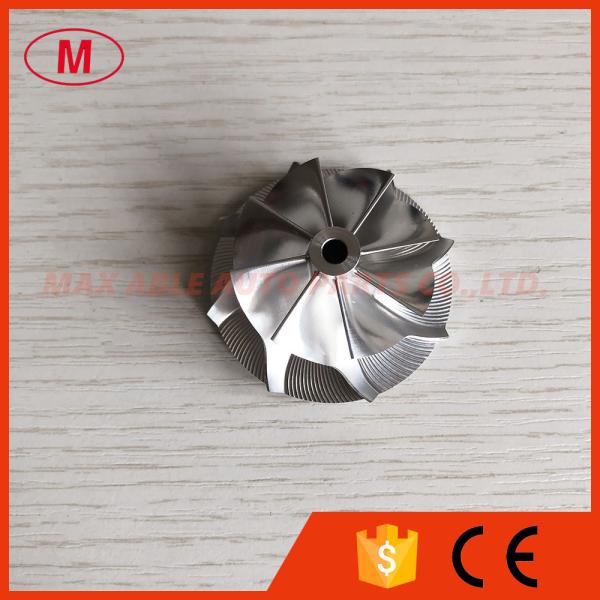

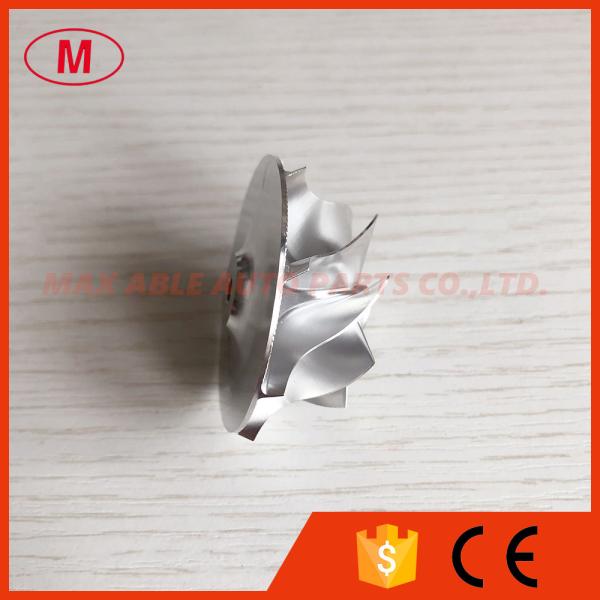

KP39 35.00/46.00mm 8+0 blades Turbo aluminum 2618/milling/billet compressor wheel Images
