RHF5 898185-1951/898068-1970 35.55/52.50mm 6+6 blades point milling Billet/milling compressor wheel for CIFW / 4JJ1T

Max Able Auto Parts Co.,Ltd.
Contact Now

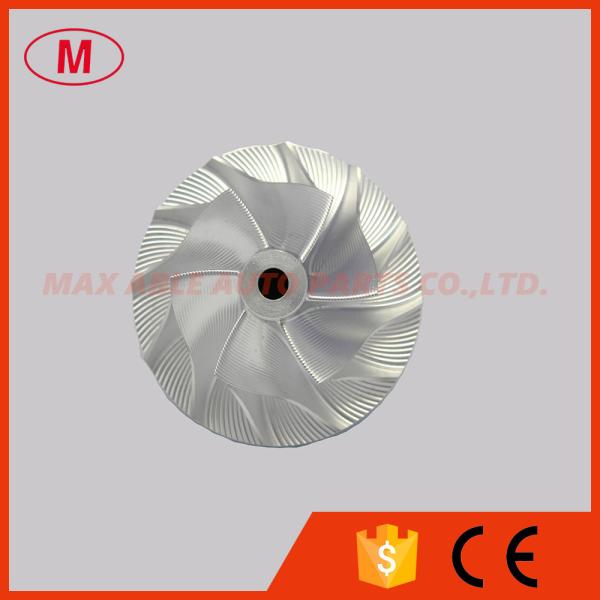

RHF5 898185-1951/898068-1970 35.55/52.50mm 6+6 blades point milling Billet/milling compressor wheel for CIFW / 4JJ1T

  • 1
  • 2
  • 3

Brand Name : NO

Model Number : RHF5

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Size : 35.55/52.50mm

Type : Turbochargers

Contact Now

1. MODEL: RHF5 forward​
2.RHF5 898185-1951/898068-1970 35.55/52.50mm 6+6 blades point milling turbo Billet/milling/aluminum 2024 compressor wheel for CIFW / 4JJ1T /VA430131
3.Size:
Nose diameter:11.70mm
Inducer:35.55mm
exducer:52.50mm
Tip height:4.47mm
Superback:1.53mm
bore size :5.10mm
Overall height:26.50mm
Cutback:4.0
Trailing Angle:60
SP height Angle:5.00
Splitter height:12.32mm
Blade height:22.15mm
6+6 blades forward
It is for OE compressor housing
Tapered tip Angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
