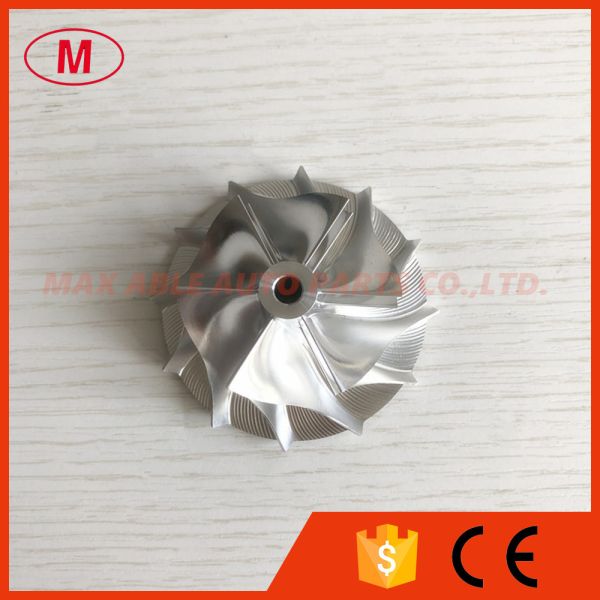

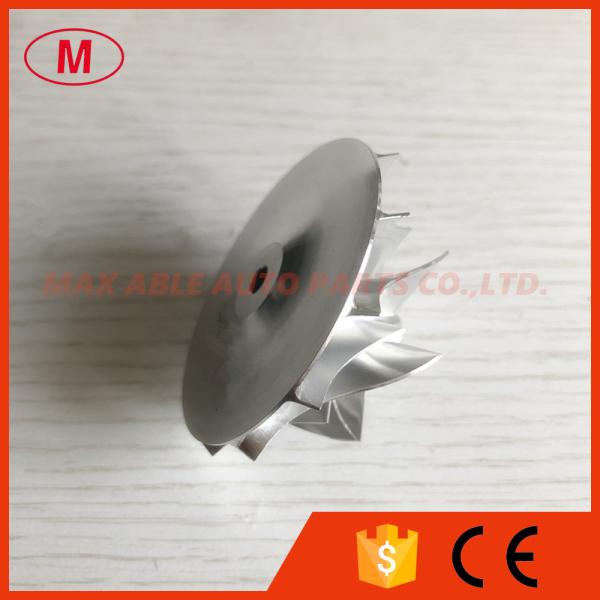

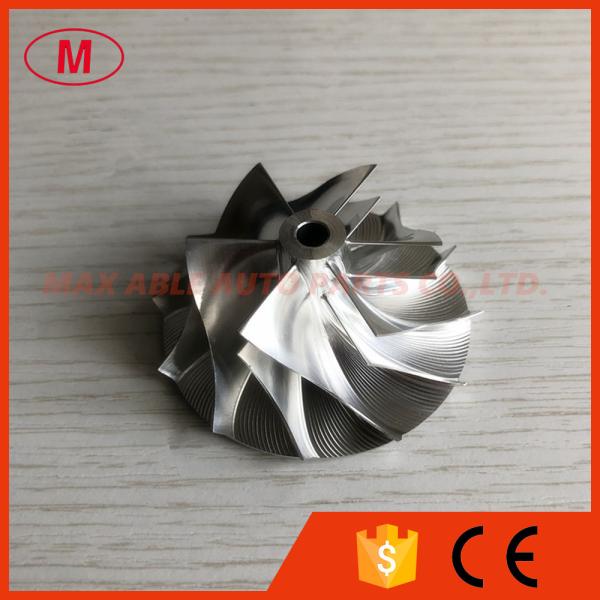

TD04HL 6+6 blades 49189-43400 1401-404-425 40.68/56.02mm turbo milling/aluminum 2618/billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : TD04HL

Certification : ISO

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:TD04HL forward

2.TD04HL 6+6 blades 49189-43400 1401-404-425 40.68/56.02mm high performance turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose Diameter:10.77mm

Inducer:40.68mm

exducer:56.02mm

Tapered tip exducer:59.91mm

Overall height:26.22mm

bore size :5.00mm

bore type:through

Tip height:4.37mm

Superback:1.83mm

Blade height:22.38mm

Trailing Angle:55 degree

Cutback:0.0

Splitter height:15.35mm

Sp height angle:-2.00

6+6 blades forward

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
