KP39 41.00/50.96mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Place of Origin : China

Brand Name : no

Model Number : KP39

MOQ : 1PCS

Packaging Details : neutral packing

Delivery Time : 3-7 days after payment

Payment Terms : TT,western union ,paypal

Contact Now

1. MODEL:KP39 reverse

2.KP39 reverse 41.00/50.96mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

3.Size:

Nose diameter:10.00mm

Inducer:41.00mm

exducer:50.96mm

Tapered tip exducer:54.53mm

Tip height:4.09mm

Superback:2.81mm

bore size :4.10mm

bore type:through

Overall height:24.70mm

Cutback:0.0mm

Trailing Angle:65 degree

SP height angle:-4.50

Blade height:19.78mm

Spltter height:13.80mm

6+6blades reverse

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

skype : maxabledieselparts

wechat/whatsapp:+86-18018657719

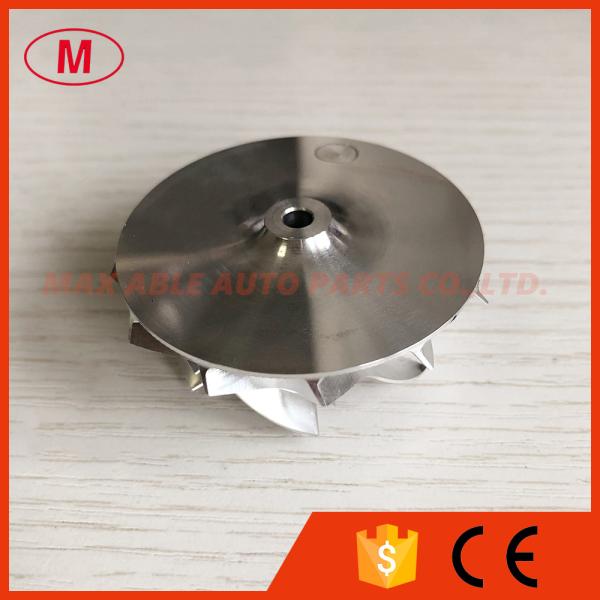

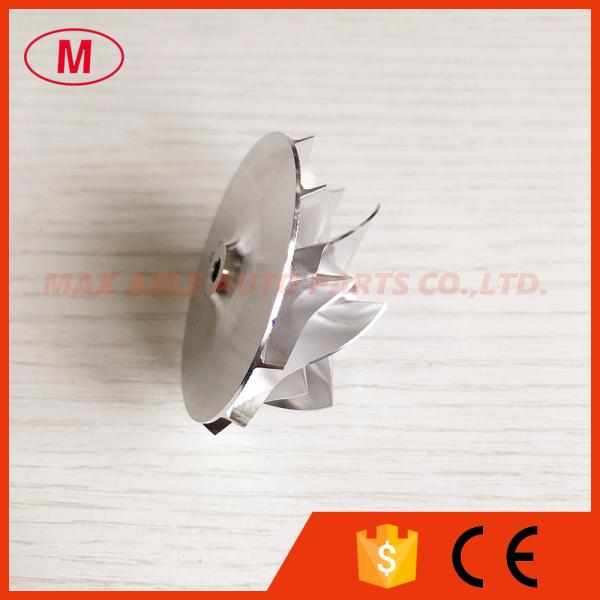

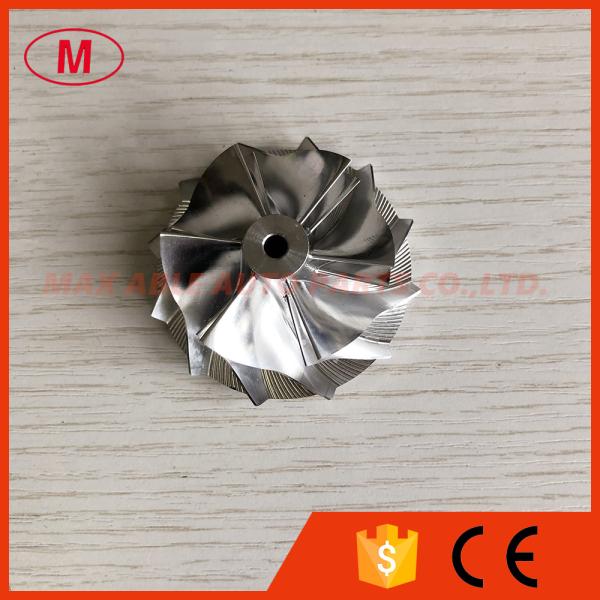

KP39 41.00/50.96mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel Images
