K04 54.20/66.56mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:K04 forward

2.K04 54.20/66.56mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:11.80mm

inducer:54.20mm

Exduder:66.56mm

Tapered tip exducer:70.56mm

Tip height:4.93mm

Superback:2.67mm

Overall height:31.06mm

bore size :4.61mm

bore type:through

Trailing Angle:45 degree

Cutback:8.0

SP height angle:-4.00

Blade height:23.75mm

Splitter height:15.35mm

6+6 blades

forward rotation

Tapered tip angle:27 degree

It is Custom size,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

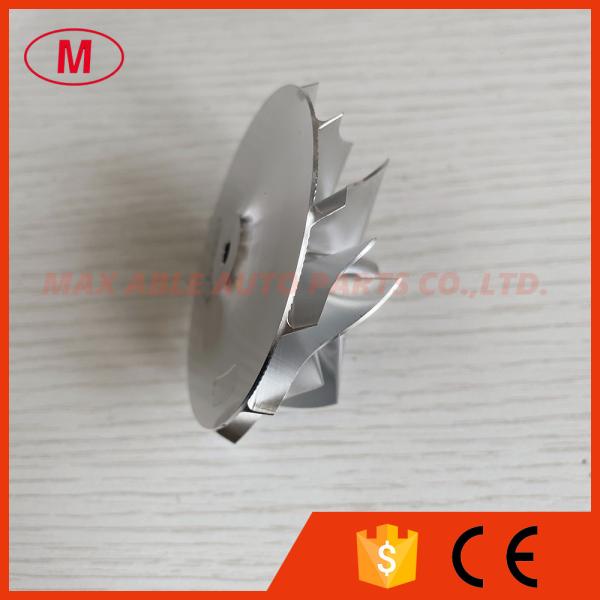

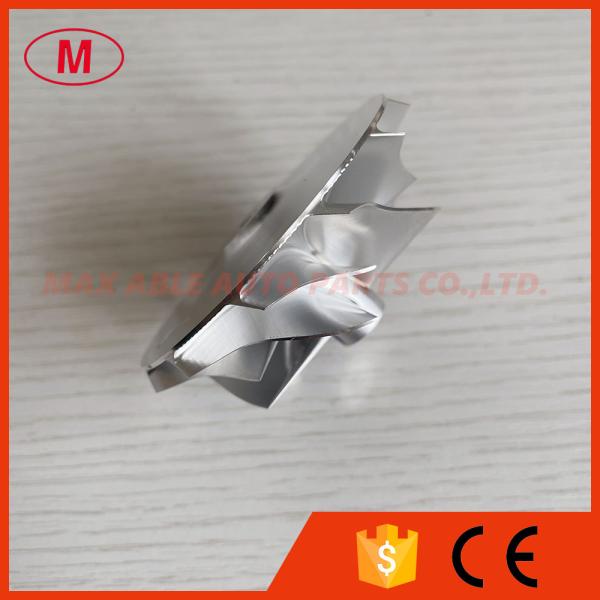

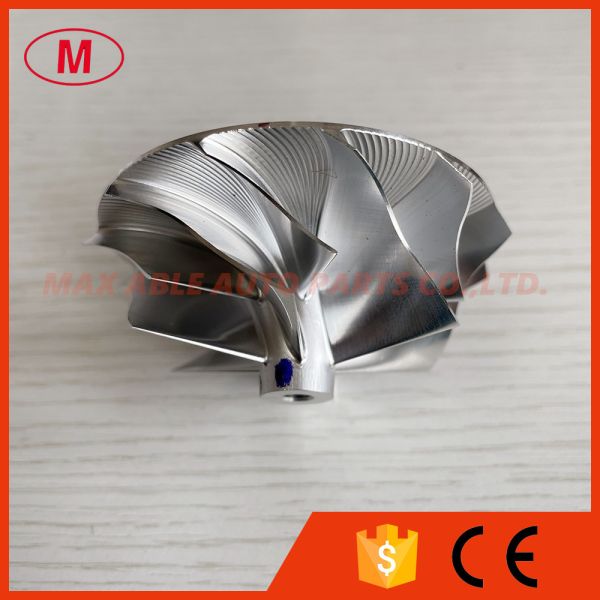

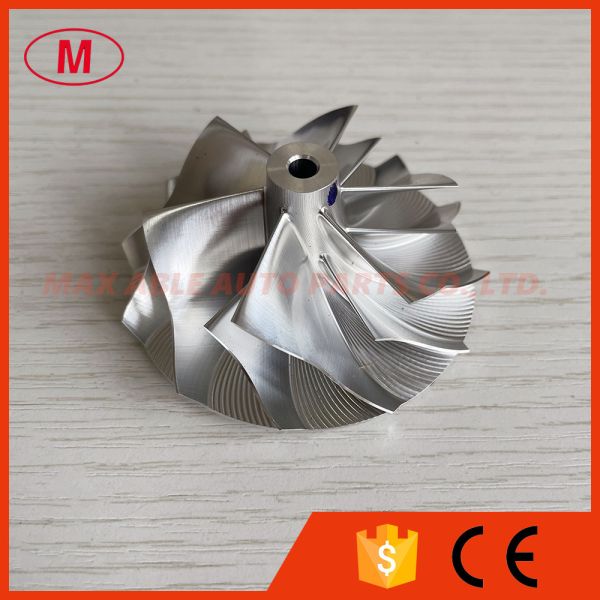

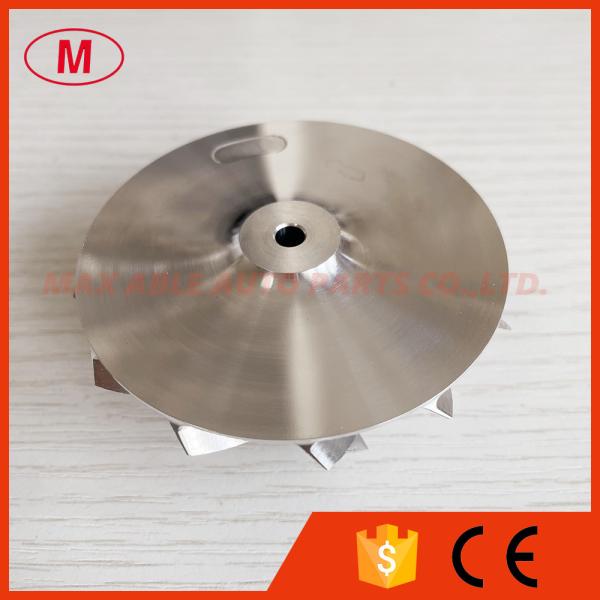

K04 54.20/66.56mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel Images
